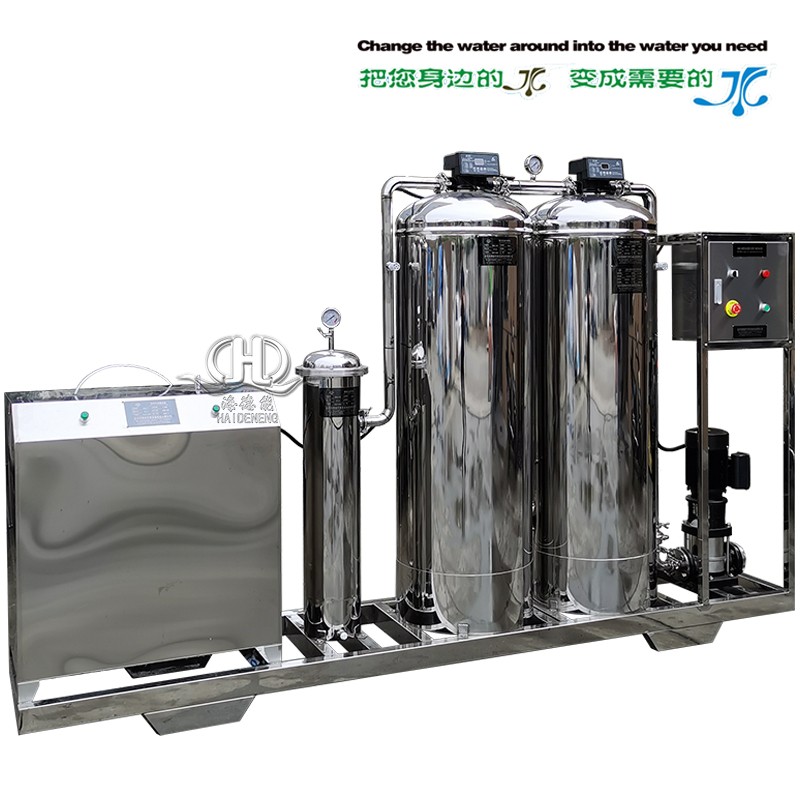

1、 Equipment name: automatic rural integrated water purification system

2、 Specification and model: hdn-3000l

3、 Equipment brand: Wenzhou Haineng wzhdn

4、 Product Description:

Rural sewage is different from urban sewage, there are a large number of industrial wastewater and runoff sewage. Rural sewage is mainly domestic sewage, mainly toilet sewage, bathing, washing and kitchen waste water. In terms of treatment technology, in view of the general situation that the financial situation of the vast rural areas is weak and the actual bearing capacity of farmers is low, the sewage collection mode and treatment technology should be carried out according to our ability. We should focus on the selection of mature and reliable sewage treatment technology which is suitable for rural characteristics and actual situation. Generally, biochemical treatment and ecological treatment are adopted, and the treated sewage should be The reuse requirements should be considered as far as possible and combined with the local ecological agriculture to form the ecological balance of wastewater reuse and reuse, so as to realize the harmless and resource utilization of sewage. On the premise that the effluent meets the standard, the most prominent advantages are as follows:

① Generally, the whole equipment does not need special management;

意昂体育② It can reduce the floor area, and can build parking lot above the equipment, without building facilities such as workshop;

意昂体育③ It has no impact on the surrounding environment, less sludge production, and less noise than the standard of class II area.

④ It is easy to operate, new technology, good effect and long service life. 　

◇ It is suitable for all kinds of rivers, rivers, lakes and reservoirs with water turbidity less than 3000mg / L in rural, urban, industrial and mining enterprises as the main water treatment device.

◇ For low temperature, low turbidity, seasonal algae lake water, has its special adaptability.

意昂体育◇ The pretreatment equipment is used for pre-treatment of high-purity water, beverage industrial water and boiler water.

意昂体育◇ It can be used in all kinds of industrial circulating water system, which can effectively and greatly improve the quality of circulating water.

6、 Equipment preparation:

意昂体育1. Gravity deep filtration:

It is an improved type of throat with shrink mouth, passing net and folding plate The comprehensive water purifier equipment of hydraulic reaction and other facilities, compact and reasonable combination of flocculation, clarification and filtration process, can easily purify the general surface water source into domestic water meeting the health standards, which is mainly applicable to the majority of rural areas, towns, farms, army barracks and small and medium-sized enterprises and institutions to improve the quality of drinking water.

意昂体育2. Security filter:

意昂体育After pretreatment, a security filter is equipped to prevent impurities larger than 1 um from entering the high-pressure pump and damaging the high-pressure pump and reverse osmosis membrane. The PP filter core with loose outside and tight inside (with framework and good strength) is adopted. The water is filtered from outside to inside, which can prolong the time of filter core being blocked. The upper part has an exhaust valve, which can prevent air from entering the pump and damaging the pump; the lower part has a drain valve, which can discharge the retained impurities at any time.

意昂体育3. Ozone sterilizer:

Ozone is recognized as a broad-spectrum and highly effective disinfectant in the world. The new generation of green environmental protection high-tech product, the active oxygen machine, uses natural air as raw material to generate high concentration ozone by electronic high-frequency and high-voltage discharge. Compared with oxygen molecules, ozone has an active oxygen atom. Its chemical property is particularly active. It is a strong oxidant and can quickly kill bacteria in the air under a certain concentration.

意昂体育7、 Process features:

意昂体育1. Modular construction, flexible assembly according to water requirements;

2. It overcomes the shortcomings of the traditional filter structure and is easy to be blocked due to its long-term operation;

意昂体育3. The treatment efficiency of pollutants is high and the effect is good

意昂体育4. Small land occupation, low investment, low operation cost, low energy consumption: natural ventilation, no aeration, only one hydraulic lift, the energy consumption per ton of water is about 0.1kw · h;

意昂体育5. The system operates automatically, without special management, only needs regular inspection;

6. No noise, smell, elegant appearance, consistent with the surrounding environment;

意昂体育7. It is suitable for on-site treatment and reuse of domestic sewage in villages and towns, sewage in scenic spots, landscape water, lake water, etc. with small water volume and large change of water quality and quantity.

意昂体育8、 Technical parameters:

意昂体育1. Applicable raw water turbidity: ≤ 3000mg / L.

意昂体育2. Applicable raw water temperature: normal temperature.

3. Turbidity of purified water effluent: < 3mg/l.

意昂体育4. The design surface load of sedimentation area: 7-8m / h · M.

意昂体育5. The design filtration rate of the filter area is 7-10m / h.

意昂体育6. The washing intensity of filter: 14-16l / s · M.

意昂体育7. Washing time: T = 4-6mim (adjustable).

8. Total stay time: t total 40-45mim

1. The system equipment enjoys one-year free warranty, and the warranty date is calculated from the date of product acceptance, and consumable filter materials are not included.
2. In case of equipment quality problems (except caused by misoperation or unforeseen factors) within the warranty period, the supplier shall repair the equipment free of charge and be responsible for replacing the damaged parts.
3. After the expiration of the warranty period, only a certain amount of material fee and appropriate technical service fee will be charged.
4. In case of system failure, which cannot be solved by itself or by telephone, our technical maintenance personnel shall make solutions (including temporary measures) and schedule within 24 hours after receiving the written notice from the demander, and report to the competent leaders of both parties.
5. After the delivery of the equipment, our company will have engineers to pay a return visit to understand the operation of the equipment and provide technical services in a timely manner. We welcome any technical questions and we will reply in time.

(1) The user shall provide the detailed data of raw water test, so that our company can carry out relevant selection and arrangement calculation.
(2) The user shall explain the water quality requirements, use and water yield.
(3) Our company has a variety of pressure vessels, membranes, accessories, etc. if the user gives special instructions, we will try our best to meet the requirements.
(4) Our company provides installation and debugging for the designed and sold equipment and training for users' operation personnel.
(5) Our company implements the principle of one-year warranty and life-long service for users, establishes files and provides tracking service to ensure the quality level.

If the above-mentioned equipment fails to meet your requirements, please contact us. We will formulate detailed engineering scheme according to your actual situation to realize low-cost, high-efficiency and scientific process combination, so as to make water production meet your ideal requirements.
